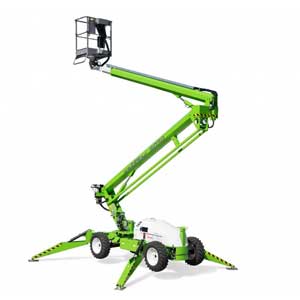

50 FT SD Outrigger Boom Lift

The SD50 work platform combines the best of our self-propelled and trailer mounted ranges. It offers the same impressive reach capabilities as the TM50 but with the versatility of a robust yet very lightweight drivable base. This allows the operator to maneuver, set up and operate the SD50 work platform without leaving the platform, especially on uneven surfaces. Rough terrain tires and 4WD as standard allow the SD50 work platform to maneuver easily over a wide range of site conditions and its outstanding reach makes it ideal for tree care or construction site work.

SKU: SD50 Categories: ,

Description

Niftylift SD50 50′ SD Outrigger Boom Lift

EQUIPMENT SPECIFICATIONS:

  • Working Height 56ft
  • Platform Height 49ft 6in
  • Machine Length 18ft 4in
  • Machine Width 5ft 3in
  • Travel Speed 5.2mph
  • Turning Radius 17ft
  • Cage Size 3ft 7in x 2ft 2in
  • Working Outreach 28ft 6in
  • Machine Height 6ft 11in
  • Working Width 14ft 5in
  • Gradeability 30% (17°)
  • Min Weight 6000lbs
  • Cage Rotation 100°
  • Safe Working Load 500lbs
  • Power Options
  • Battery Only
  • Gas or Diesel Only
  • Bi-Energy (Engine and Battery)

SAFETY REQUIREMENTS:

  • Safety Harness
  • Hard Hat
  • Safety Shoes
